Precision Balances - Resolution 0.01 - 0.1g - ES Series

Supplied By: BEL Engineering, Italy

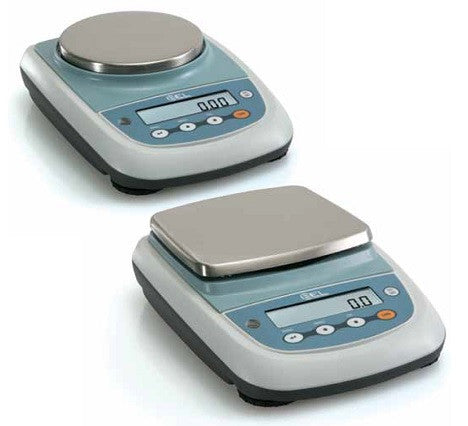

MARK ES - Resolution 0.01g - 0.1g Precision Balances

The MARK ES series of Precision Balances is a fusion of design and quality. The Mark ES Precision Balance encompasses all the experience of higher end models in a small footprint portable balance. The refined design, the small dimensions, the backlit LCD display, the possibility of operating using AA batteries and the many on board software functions already included make these balances a product with best quality over price. Quality with minimum investment.



The MARK ES series of Precision Balances has the following standard features:

    • High Resolution Load Cell Weighing System

    • External Calibration

    • LCD with backlight with adjustable contrast

    • Operating with internal accumulator (included)

    • Plastic protection cover

    • Small footprint, portable

The MARK ES series of Precision Balances has the following additional features:


Precision Balances and Weighing Scales


Features Description
LC-HR High Resolution Load Cell Strain Gauge measures the deformation as change in electrical resistance
UNITS Measuring Units Changeable measuring units that the balance will use to display weight
PCS Piece Counting Function to count identical items. Reference quantities are selectable
LIMITS Check Weighing Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH Percentual Weighing Function calculates the variation of a sample from reference value
BATTERY Battery Operating Balance can work using AA batteries
ACCU Accumulator Balance has internal accumulator or can be used with an optional external accumulator



MARK ES Precision Balance
Model Capacity (g) Resolution (g) Pan (mm) Repeatibility (g) Linearity (g) Response Time (sec)
ES202 200 0.01 Ø 110 0.01 ± 0.02 ≤ 2
ES422 420 0.01 Ø 110 0.01 ± 0.02 ≤ 2
ES1001 1000 0.1 150x140 0.1 ± 0.2 ≤ 2
ES1501 1500 0.1 150x140 0.1 ± 0.2 ≤ 2
ES2201 2200 0.1 150x140 0.1 ± 0.3 ≤ 2


Technical Data

    • Span Drift: (+ 10... + 30°C): ± 6ppm/°C

    • Dimensions: L x W x H (mm): 190 x 255 x 80

    • Power Supply: 110 - 230 Vac, 50/60 Hz; output 9V, 1.2A, 10VA

    • Net Weight: 1 Kg


    • Rechargeable battery, type AA (E803)

    • Calibration Certificate (BL0333)
