Precision Balance and Analytical Balance Suppliers

Precision Balances - Resolution 0.001g - MW Series

Supplied By: BEL Engineering, Italy

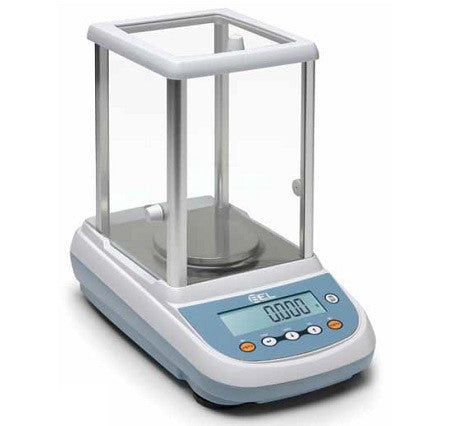

MARK MW - Resolution 0.001g Precision Balances

The MARK MW - Resolution 0.001g series of Precision Balances combines elegance with highly reliable and durable measuring performance. The Precision Balances consist of double case structure, ergonomic keypad and many embedded advances features making them perfect for use in laboratory, research departments, formulation, and quality control.

Features

The MARK MW - Resolution 0.001g series of Precision Balances has the following standard features:

Electromagnet Force Restoration Weighing System
External or Automatic Internal Calibration
LCD with backlight with adjustable contrast
Large glass draught shield with 3 sliding doors for easy access to the items being weighed
Under Hook Weighing
Plastic protection cover

The MARK MW - Resolution 0.001g series of Precision Balances has the following additional features:

Precision Balances and Weighing Scales

Features		Description
EM-FR	Electro Magnetic Force Restoration	Coil in a permanent magnet for the most accurate weighings
RS-232	RS 232 Data Interface	Port to connect the balance to printer, PC and peripheral devices
UNITS	Measuring Units	Changeable measuring units that the balance will use to display weight
PCS	Piece Counting	Function to count identical items. Reference quantities are selectable
LIMITS	Check Weighing	Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH	Percentual Weighing	Function calculates the variation of a sample from reference value
ADD	Adding Weighing	To effect sum of consecutive weighings. Shows total and current weight
ANIMAL	Animal Weighing	Accurate readings under unstable conditions such as moving laboratory animals
DENSITY	Density Determination	Function accurately determines density of a solid object or a liquid
PEAK	Max Load	Retains the peak value. Eg - When a maximum force is quickly released
UNDER	Suspended Weighing	A support with hook can be loaded on the underside of the balance

Models

MARK MW - Resolution 0.001g External Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MW223	220	0.001	Ø 110	0.0005	± 0.002	≤ 2
MW333	350	0.001	Ø 110	0.0005	± 0.002	≤ 2
MW523	520	0.001	Ø 110	0.001	± 0.002	≤ 2
MW723	720	0.001	Ø 110	0.001	± 0.002	≤ 2
MW1003	1000	0.001	Ø 110	0.001	± 0.003	≤ 3
MW1203	1200	0.001	Ø 110	0.001	± 0.003	≤ 3
MW1003D	500/1000	0.001/0.01	Ø 110	0.001/0.005	± 0.001/± 0.01	≤ 2
MW1203D	720/1200	0.001/0.01	Ø 110	0.001/0.005	± 0.002/± 0.01	≤ 2

MARK MW - Resolution 0.001g Internal Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MW223i	220	0.001	Ø 110	0.0005	± 0.002	≤ 2
MW333i	350	0.001	Ø 110	0.0005	± 0.002	≤ 2
MW523i	520	0.001	Ø 110	0.001	± 0.002	≤ 2
MW723i	720	0.001	Ø 110	0.001	± 0.002	≤ 2
MW1003i	1000	0.001	Ø 110	0.001	± 0.003	≤ 3
MW1203i	1200	0.001	Ø 110	0.001	± 0.003	≤ 3
MW1003Di	500/1000	0.001/0.01	Ø 110	0.001/0.005	± 0.001/± 0.01	≤ 2
MW1203Di	720/1200	0.001/0.01	Ø 110	0.001/0.005	± 0.002/± 0.01	≤ 2

Technical Data

Span Drift: (+ 10... + 30°C): ± 4ppm/°C
Dimensions: L x W x H (mm): 345 x 215 x 345
Weighing Chamber Dimensions: L x W x H (mm): 160 x 140 x 330
Power Supply: 110 - 230 Vac, 50/60 Hz; output 24V, 500mA, 13VA
Net Weight: 6.1 Kg (External Calibration Model)
Net Weight: 6.3 Kg (Internal Calibration Model)

Accessories:

BEL Tablet System for Balances. USB version (BL0329) or Bluetooth version (BL0330)
Bluetooth printer DPP-250-BT for BEL Table System (AC013)
Serial Printer TLP-50, with date and time
Serial Printer DPP-250 (AC007)
Density Kit for solids and liquids (AC002)
Alphanumeric external keyboard (AC005)
Serial to USB converter (E1002)
Serial Cable for serial output to printer or PC (E743)
Calibration Certificate (BL0333)
Conformity Declaration (Verification)

MARK MGW - Resolution 0.001g Precision Balances

Precision Balances and Weighing Scales

The MARK MGW - Resolution 0.001g series of Precision Balances combines elegance with highly reliable and durable measuring performance. The Precision Balances consist of double case structure, ergonomic keypad and many embedded advances features making them perfect for use in laboratory, research departments, formulation, and quality control. The additional feature of the graphic display allows efficient and easy operations.

Features

The MARK MGW - Resolution 0.001g series of Precision Balances has the following standard features:

Electromagnet Force Restoration Weighing System
External or Automatic Internal Calibration
Large Graphical Display
Recipe Database: 99 recipes can be stored, each with up to 20 ingredients
GLP/ISO record keeping of weight values with date, time and serial number
Multi Language: EN, DE, FR, IT, ES, PT
Large glass draught shield with 3 sliding doors for easy access to the items being weighed
Plastic protection cover
Under Hook Weighing

The MARK MGW - Resolution 0.001g series of Precision Balances has the following additional features:

Precision Balances and Weighing Scales

Features		Description
EM-FR	Electro Magnetic Force Restoration	Coil in a permanent magnet for the most accurate weighings
RS-232	RS 232 Data Interface	Port to connect the balance to printer, PC and peripheral devices
UNITS	Measuring Units	Changeable measuring units that the balance will use to display weight
PCS	Piece Counting	Function to count identical items. Reference quantities are selectable
LIMITS	Check Weighing	Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH	Percentual Weighing	Function calculates the variation of a sample from reference value
ADD	Adding Weighing	To effect sum of consecutive weighings. Shows total and current weight
ANIMAL	Animal Weighing	Accurate readings under unstable conditions such as moving laboratory animals
DENSITY	Density Determination	Function accurately determines density of a solid object or a liquid
PEAK	Max Load	Retains the peak value. Eg - When a maximum force is quickly released
GLP	GLP Setup	Allows to store identification data of balance, project and user, date and time
CLOCK	Date and Time	Balance Shows Current date and time
LANG	Multi Language	Several languages can be selected from the menu of the balance
RECIPE	Formulation	Allows to set recipes with names and tolerances for each ingredient. Automatic reproportioning
UNDER	Suspended Weighing	A support with hook can be loaded on the underside of the balance

Models

MARK MGW - Resolution 0.001g External Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MGW223	220	0.001	Ø 110	0.0005	± 0.002	≤ 2
MGW333	350	0.001	Ø 110	0.0005	± 0.002	≤ 2
MGW523	520	0.001	Ø 110	0.001	± 0.002	≤ 2
MGW723	720	0.001	Ø 110	0.001	± 0.002	≤ 2
MGW1003	1000	0.001	Ø 110	0.001	± 0.003	≤ 3
MGW1203	1200	0.001	Ø 110	0.001	± 0.003	≤ 3
MGW1003D	500/1000	0.001/0.01	Ø 110	0.001/0.005	± 0.001/± 0.01	≤ 2
MGW1203D	720/1200	0.001/0.01	Ø 110	0.001/0.005	± 0.002/± 0.01	≤ 2

MARK MGW - Resolution 0.001g Internal Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MGW223i	220	0.001	Ø 110	0.0005	± 0.002	≤ 2
MGW333i	350	0.001	Ø 110	0.0005	± 0.002	≤ 2
MGW523i	520	0.001	Ø 110	0.001	± 0.002	≤ 2
MGW723i	720	0.001	Ø 110	0.001	± 0.002	≤ 2
MGW1003i	1000	0.001	Ø 110	0.001	± 0.003	≤ 3
MGW1203i	1200	0.001	Ø 110	0.001	± 0.003	≤ 3
MGW1003Di	500/1000	0.001/0.01	Ø 110	0.001/0.005	± 0.001/± 0.01	≤ 2
MGW1203Di	720/1200	0.001/0.01	Ø 110	0.001/0.005	± 0.002/± 0.01	≤ 2
