Analytical Balances - Resolution 0.0001g - M Series

Supplied By: BEL Engineering, Italy

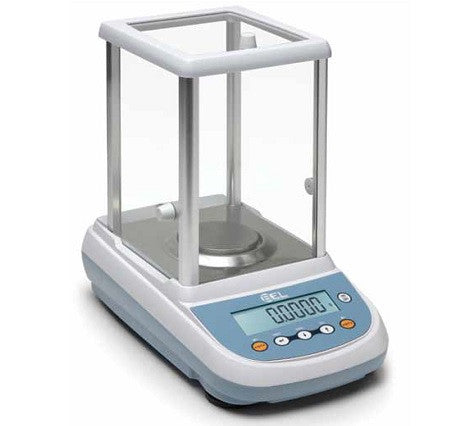

MARK M - Resolution 0.0001g Analytical Balances

The MARK M - Resolution 0.0001g series of Analytical Balances combines elegance with highly reliable and durable measuring performance. The Analytical Balances consist of double case structure, ergonomic keypad and many embedded advances features making them perfect for use in laboratory, research departments, formulation, and quality control.

Features

The MARK M - Resolution 0.0001g series of Analytical Balances has the following standard features:

Electromagnet Force Restoration Weighing System
External or Automatic Internal Calibration
LCD with backlight with adjustable contrast
Large glass draught shield with 3 sliding doors for easy access to the items being weighed
Plastic protection cover

The MARK M - Resolution 0.0001g series of Analytical Balances has the following additional features:

Analytical Balances and Weighing Scales

Features		Description
EM-FR	Electro Magnetic Force Restoration	Coil in a permanent magnet for the most accurate weighings
RS-232	RS 232 Data Interface	Port to connect the balance to printer, PC and peripheral devices
UNITS	Measuring Units	Changeable measuring units that the balance will use to display weight
PCS	Piece Counting	Function to count identical items. Reference quantities are selectable
LIMITS	Check Weighing	Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH	Percentual Weighing	Function calculates the variation of a sample from reference value
ADD	Adding Weighing	To effect sum of consecutive weighings. Shows total and current weight
ANIMAL	Animal Weighing	Accurate readings under unstable conditions such as moving laboratory animals
DENSITY	Density Determination	Function accurately determines density of a solid object or a liquid
PEAK	Max Load	Retains the peak value. Eg - When a maximum force is quickly released

Models

MARK M - Resolution 0.0001g External Calibration Analytical Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
M124A	120	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
M164A	160	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
M214A	220	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
M254A	250	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
M314A	310	0.0001	Ø 80	0.0001	± 0.0004	≤ 4

MARK M - Resolution 0.0001g Internal Calibration Analytical Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
M124Ai	120	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
M164Ai	160	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
M214Ai	220	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
M254Ai	250	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
M314Ai	310	0.0001	Ø 80	0.0001	± 0.0004	≤ 4
M414Ai	410	0.0001	Ø 80	0.0001 if weight ≤ 220g 0.0003 from 220g to 310g 0.00035 from 310g to 410g	± 0.0004	≤ 4
M514Ai	510	0.0001	Ø 80	0.0001 if weight ≤ 220g 0.0003 from 220g to 310g 0.00035 from 310g to 410g	± 0.0004	≤ 4

Technical Data

Span Drift: (+ 10... + 30°C): ± 3ppm/°C
Dimensions: L x W x H (mm): 345 x 215 x 345
Weighing Chamber Dimensions: L x W x H (mm): 160 x 140 x 330
Power Supply: 110 - 230 Vac, 50/60 Hz; output 24V, 500mA, 13VA
Net Weight: 6.3 Kg (External Calibration Model)
Net Weight: 6.6 Kg (Internal Calibration Model)

Accessories:

BEL Tablet System for Balances. USB version (BL0329) or Bluetooth version (BL0330)
Bluetooth printer DPP-250-BT for BEL Table System (AC013)
Serial Printer TLP-50, with date and time
Serial Printer DPP-250 (AC007)
Density Kit for solids and liquids (AC002)
Alphanumeric external keyboard (AC005)
Serial to USB converter (E1002)
Serial Cable for serial output to printer or PC (E743)
Calibration Certificate (BL0333)
Conformity Declaration (Verification)

MARK MG - Resolution 0.0001g Analytical Balances

Analytical Balances and Weighing Scales

The MARK MG - Resolution 0.0001g series of Analytical Balances combines elegance with highly reliable and durable measuring performance. The Analytical Balances consist of double case structure, ergonomic keypad and many embedded advances features making them perfect for use in laboratory, research departments, formulation, and quality control. The additional feature of the graphic display allows efficient and easy operations.

Features

The MARK MG - Resolution 0.0001g series of Analytical Balances has the following standard features:

Electromagnet Force Restoration Weighing System
External or Automatic Internal Calibration
Large Graphical Display
Recipe Database: 99 recipes can be stored, each with up to 20 ingredients
GLP/ISO record keeping of weight values with date, time and serial number
Multi Language: EN, DE, FR, IT, ES, PT
Large glass draught shield with 3 sliding doors for easy access to the items being weighed
Plastic protection cover

The MARK MG - Resolution 0.0001g series of Analytical Balances has the following additional features:

Analytical Balances and Weighing Scales

Features		Description
EM-FR	Electro Magnetic Force Restoration	Coil in a permanent magnet for the most accurate weighings
RS-232	RS 232 Data Interface	Port to connect the balance to printer, PC and peripheral devices
UNITS	Measuring Units	Changeable measuring units that the balance will use to display weight
PCS	Piece Counting	Function to count identical items. Reference quantities are selectable
LIMITS	Check Weighing	Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH	Percentual Weighing	Function calculates the variation of a sample from reference value
ADD	Adding Weighing	To effect sum of consecutive weighings. Shows total and current weight
ANIMAL	Animal Weighing	Accurate readings under unstable conditions such as moving laboratory animals
DENSITY	Density Determination	Function accurately determines density of a solid object or a liquid
PEAK	Max Load	Retains the peak value. Eg - When a maximum force is quickly released
GLP	GLP Setup	Allows to store identification data of balance, project and user, date and time
CLOCK	Date and Time	Balance Shows Current date and time
LANG	Multi Language	Several languages can be selected from the menu of the balance
RECIPE	Formulation	Allows to set recipes with names and tolerances for each ingredient. Automatic reproportioning
UNDER	Suspended Weighing	A support with hook can be loaded on the underside of the balance

Models

MARK MG - Resolution 0.0001g External Calibration Analytical Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MG124A	120	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
MG164A	160	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
MG214A	220	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
MG254A	250	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
MG314A	310	0.0001	Ø 80	0.0001	± 0.0004	≤ 4

MARK MG - Resolution 0.0001g Internal Calibration Analytical Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MG124Ai	120	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
MG164Ai	160	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
MG214Ai	220	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
MG254Ai	250	0.0001	Ø 80	0.0001	± 0.0003	≤ 4
MG314Ai	310	0.0001	Ø 80	0.0001	± 0.0004	≤ 4
MG414Ai	410	0.0001	Ø 80	0.0001 if weight ≤ 220g 0.0003 from 220g to 310g 0.00035 from 310g to 410g	± 0.0004	≤ 4
MG514Ai	510	0.0001	Ø 80	0.0001 if weight ≤ 220g 0.0003 from 220g to 310g 0.00035 from 310g to 410g	± 0.0004	≤ 4
