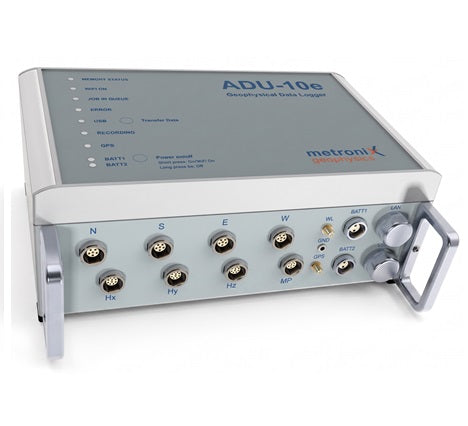

ADU-10e 32 Bit Geophysical EM Measurement System

ADU-10e 32 Bit Geophysical EM Measurement System

As in seismics, technological advances in electromagnetic recording systems have emphasised the require­ment for simultaneous multi-channel data acquisition.

The Multi-Method Network Geophysical Measurement System ADU‑10e is the result of over 40 years of metronix´s experience in the design and manufacture of electromagnetic geophysical instruments. The electric and/or magnetic field sensors are connected directly to the ADU‑10e (Analog/Digital Signal Conditioning Unit), which is the core unit of this system. Multiple ADU‑10e units can be connected to a network using simple, light-weight and inexpensive network cable or WiFi.

The ADU-10e is a dedicated LF EM data logger for long term monitoring of geophysical EM signals. It is designed for use in a wide range of applications, including earthquake monitoring, volcano monitoring, and environmental monitoring.

Features

• High data quality due to 32 Bit Analog/Digital conversion technology

• Can be operated as a stand alone or as a multi-channel network system

• Compatible with all metronix sensors

• Automatic unattended recording mode

• Automated system self check of ADU‑10e and sensors during booting

• Realtime display of time series and spectra

• Automatic determination of best setup of gains and filters on site

• 12 V battery powered. Two batteries can be connected for permanent operation

• Compact, light-weight, ruggedized and water-proof instrument design

• Wide operating temperature range from -30°C to +60°C
