Broad Band Induction Coil Magnetometer MFS-10e

Supplied By: Metronix Geophysics, Germany

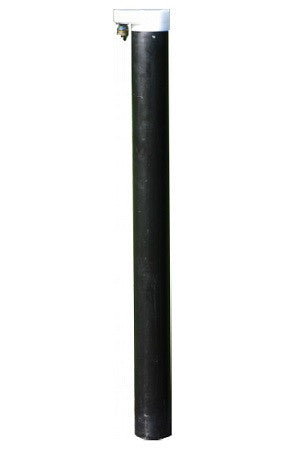

MFS-10e Broad Band Induction Coil Magnetometer

The broadband induction coil magnetometer MFS-10e has been developed to measure variations of the Earth´s magnetic field, particularly for applications in Magnetotellurics (MT) and Controlled Source Audio Magnetotellurics (CSAMT). It covers a wide frequency range from 0.0001 Hz up to 10 kHz. In spite of its wide bandwidth, the MFS-10e shows outstanding low-noise characteristics, extremely low temperature drift of input offset voltage and offset current and a very stable transfer function over temperature and time. The MFS-10e is the result of many years of experience of metronix in the design, manufacture and application of induction coil magnetometers.

Metronix takes special care of the initial calibration of all MFS-10e magnetometers as part of the ISO9001 certified production process. Tests have demonstrated an excellent long time stability of the transfer function. The integrated calibration facility makes it easy for the user to perform an online calibration or test of the magnetometer´s transfer function. A differential test signal can simply be injected into the CAL input of the sensor

As all sensors of the e-series the MFS-10e has a chip with integrated calibration function and can be auto-detected by the ADU-07e.

The MFS-10e has almost the same characteristics as the famous MFS-06e (the MFS-06e slightly outperforms the MFS-10e). The coils are specially designed to be used as z-component (cable connector points down) and are 29 cm shorter as the MFS-06e and are heavier by 1 kg

Magnetotelluric Broadband Sensors

MFS-10e Technical Specifications

MFS-10e Technical Specifications
Frequency Range 0.00025Hz - 10kHz
Frequency Bands 0.00025Hz - 500Hz (chopper on)
10Hz - 10kHz (chopper off)
Sensor Noise 1.5 x 10-2 nT/√Hz @0.01Hz
1.5 x 10-4 nT/√Hz @1Hz
5.0 x 10-6 nT/√Hz @1000Hz
Output Sensitivity 0.2 V/(nT*Hz) f << 4Hz
0.8 V/nT f >> 4Hz
Output Voltage Range ± 10V
Function Induction coil with magnetic field feedback
Connector ODU G32KON-T10QJ00-000 (coil socket)
ODU S22KON-T10MJG0-7000 (cable plug)
Calibration Input Sensitivity 4 nT/V
Feedback cut-off Frequency 4 Hz
Supply Voltage ± 12V to ± 15V stabilized and filtered
Supply Current ± 25mA
Case Rugged, Waterproof Case
Weight Aprrox. 9 Kg
External Dimensions L:853 x Ø:75 mm
Operating temperature range -25°C to + 70°C
