Low Noise Flux Gate FGS-03e: 3-Axis Fluxgate Sensor
Supplied By: Metronix Geophysics, Germany
Rs. 0.00
FGS-03e Low Noise Flux Gate

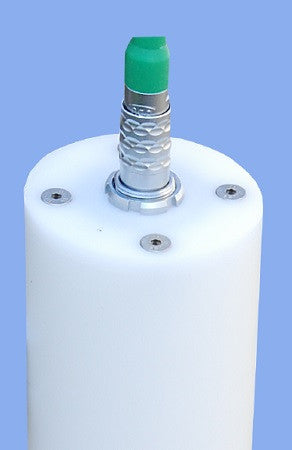

The FGS-03e is a low noise 3-axis fluxgate sensor. It extends the frequency range for MT measurements down to DC. The FGS-03e provides automatic sensor detection with ADU07e systems. The sensor core unit is a Bartington Mag-03.
For lower frequencies all transfer functions are linear. This sensor is designed for crustal studies where periods of 10,000 seconds and more are needed. Recording time for those periods are three to eight weeks depending on the data quality (magnetic activity and external interferences by man made noise).
FGS-03e Technical Specifications
| FGS-03e Technical Specifications | |
|---|---|
| Frequency Range | DC - 3kHz DC - 30 sec for MT measurements |
| Sensor Noise | < 0.006 nT/√Hz @ 1Hz |
| Output Sensitivity | 0.1 mV/nT f (model:L100) 0.143 mV/nT f (model:L70) |
| Orthogonality Error | < 0.5° |
| Output Voltage Range | ± 10V |
| Measuring Range | ± 100,000 nT (model:L100), ± 70,000 nT (model:L70) |
| Connector | ODU G32KON-T10QJ00-000 (FluxGate socket) ODU S22KON-T10MJG0-7000 (cable plug) |
| Offset Temperature Coefficient | ± 0.1 nT/°C |
| Offset Error | ± 5 nT |
| Supply Voltage | ± 12V to ± 15V stabilized and filtered |
| Supply Current | + 26mA, -6mA (+1.4mA per 100μT for each axis) |
| Case | Rugged, Waterproof Case |
| Weight | Aprrox. 3 Kg |
| External Dimensions | L:300 x Ø:75 mm |
| Operating temperature range | -40°C to + 70°C |
