Pilot and Technical Freeze Dryers & Lyophilizers

Supplied By: Zirbus, Germany

lyophilizers and Freeze Dryers for Pilot and Laboratory use

Pilot/Laboratory Freeze Drying Unit Sublimator 2-3-3

    • Round and rectangular drying chambers up to 5 m³

    • Two- chamber systems with separation valve

    • Hinged and sliding doors

    • Flexible size of shelves and distances up to 90m²

    • Materials made of stainless steel 316TI, 316L

    • Compressor and / or N2-liquid cooling up to -150°C

    • Condenser for ice up to 800kg/24h, condenser for solvents

    • Steam sterilization SIP

    • Remove of sample in lock

    • Visualization of process

    • Sealing system for vials

    • Trays for product

    • Explosion- proof version

    • GMP conform version, pharmaceutical sector

    • Documentation / Qualification

Additional options:

    • maniford with 6 or 12 connections

    • Removable inner rack made of aluminium, with infra-red heating

    • Sealing system for vials

    • GMP conformity

    • N2-liquid cooling

    • Visualtization, Siemens operation system

    • Batch documentation systems

    • Glovebox connection



Drying Chamber Condenser for ice
Dimensions W250xH350xD350mm Dimensions Ø220x450mm
Volume 30 litres Volume 17 litres
Size
of shelves
200x300 mm Capacity 5kg/24h
shelf
configuration
3 shelfex / 85mm distance,
4/60, 5/45
Temperature <-50°C/<-80°C
Max. size
of shelf
0.30 m² Defrosting electrically
or by steam
Temp.
of shelf
-35°C/-60°C
up to  +60°C
- -



lyophilizers and Freeze Dryers for Pilot and Laboratory use

Freeze Drying Plant Sublimator 3x4x5

    • Two- chamber system

    • Compact floor standing unit

    • Visible condenser

    • Rectangular drying chamber

    • Variable equipment for choice

    • Air- or water-cooler cooling system

    • GMP-FDA conform

    • Outer dimenstions: W 700 x H 1850 x D 800 mm

Additional options:

    • Wall construction / Isolator glove box

    • Sealing system for vials

    • Removable inner rack made of aluminium, with infra-red heating

    • CIP/SIP/cGMP-conform

    • N2-liquid cooling/ EX-proof system against ATEX 94/9/EG





Drying Chamber Condenser for ice
Dimensions
(WxHxD)
350x550x550mm Dimensions Ø300-400x
600mm
Volume 96 litres Volume 40-75 litres
Size
of shelves
300x400 mm Capacity 5-20kg/24h

shelf
configuration

5 shelves / 80mm distance,
6/65, 7/55, 8/45
Temperature <-50°C/<-80°C
Max. size
of shelf
0.96 m² Defrosting electrically or
by steam
Temp.
of shelf
-40/<-55°C up to +60°C  -  -



lyophilizers and Freeze Dryers for Pilot and Laboratory use

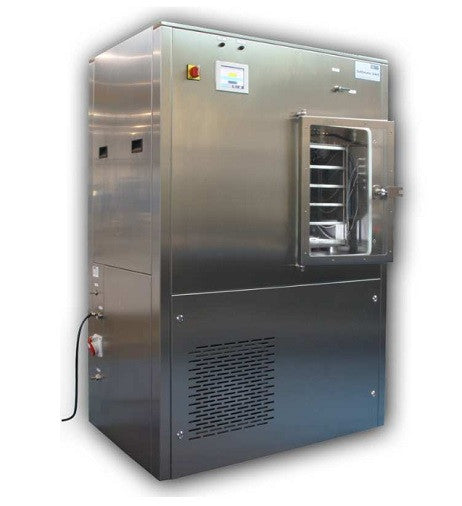

Freeze Drying Plant Sublimator 4x5x6

    • Two- chamber system

    • Compact floor standing unit

    • Rectangular drying chamber

    • Variable equipment for choice

    • Air- or water-cooler cooling system

    • cGMP-FDA conform

    • Outer dimenstions: W 1300 x H 1850 x D 1000 mm

Additional options:

    • Wall construction / Isolator glove box

    • Sealing system for vials

    • Removable inner rack made of aluminium, with infra-red heating

    • CIP/SIP/cGMP-conform

    • N2-liquid cooling





Drying Chamber Condenser for ice
Dimensions
(WxHxD)
450x650x550mm Dimensions Ø400-500x
600mm
Volume 160 litres Volume 75-120 litres
Size
of shelves
400x500 mm Capacity 15-40kg/24h

shelf
configuration

5 shelves / 100mm distance,
6/80, 7/65, 8/55, 9/45
Temperature <-55°C/<-85°C
Max. size
of shelf
2 m² Defrosting electrically or
by steam
Temp.
of shelf
-40/<-55°C up to +80°C  -  -
