Laboratory Freeze Dryers & Lyophilizers
Supplied By: Zirbus, Germany
Rs. 0.00

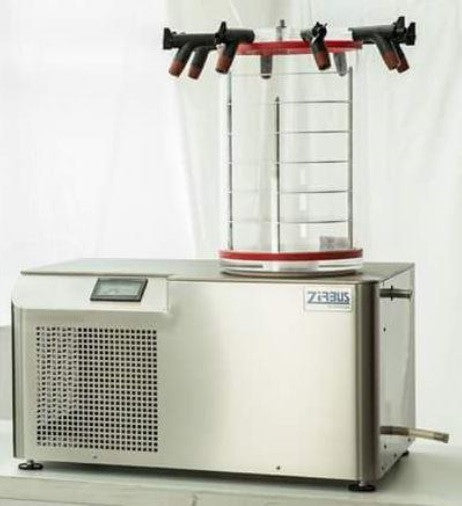

Laboratory Freeze Dryer VaCo 2
-
Modular system, main component is the condenser
-
Stainless steel manifold with 6 or 12 connections
-
Acryl chambers Ø200mm x 300mm or Ø300mm x 400mm
-
Inner racks shelves Ø175mm or Ø270mm
-
Vacuum regulation by magnetic valve
-
Vacuum pumps 5,10m³/h and chemical resistant type
-
Ampoules adapter 16
-
N2-liquid cooling with up to –150°C
|
VaCo 2 |
VaCo 2-II |
|
|---|---|---|
|
Dimensions |
Ø 200 x 180 mm |
Ø 200 x 180 mm |
|
Volume |
5,7 litres |
5,7 litres |
|
Temperature |
-50°C |
-80°C |
|
Ice capacity |
2 kg/24h |
2 kg/24h |
|
Max. Ice |
3 kg |
3 kg |
|
Cooling system |
one- stage, |
two-stage, |
|
Outer |
340x450x470mm |
440x450x470mm |
|
Weight |
45kg |
58kg |
|
Electrical connection |
230 V, 50/60 Hz |
230 V, 50/60 Hz |
Laboratory Freeze Dryer VaCo 5
-
Modular system, main component is the condenser
-
Stainless steel manifold with 6 or 12 connections
-
Acryl chambers Ø300mm x 400mm or Ø400mm x 500mm
-
Inner racks shelves Ø270mm or Ø370mm
-
Vial stoppering system
-
Vacuum regulation by magnetic valve
-
Vacuum pumps 5,10m³/h and chemical resistant type
-
Ampoules adapter 16
-
N2-liquid cooling with up to –150°C
-
Microprocessor controller with 4 line LCD display for indication of condenser temp. and vacuum, integrated Pirani sensor 0.001…1000mbar (On Request)
|
VaCo 5 |
VaCo 5-II |
|
|---|---|---|
|
Dimensions |
Ø 270 x 280 mm |
Ø 270 x 280 mm |
|
Volume |
16 litres |
16 litres |
|
Temperature |
-50°C |
-80°C |
|
Ice capacity |
5 kg/24h |
5 kg/24h |
|
Max. Ice |
6 kg |
6 kg |
|
Cooling system |
one- stage, |
two-stage, |
|
Outer |
705x420x425mm |
705x480x425mm |
|
Weight |
60kg |
75kg |
|
Electrical connection |
230 V, 50/60 Hz |
230 V, 50/60 Hz |
Laboratory Freeze Dryer VaCo 10
-
Modular system, main component is the condenser
-
Stainless steel manifold with 6 or 12 connections
-
Acryl chambers Ø300mm x 400mm or Ø400mm x 500mm
-
Inner racks shelves Ø270mm or Ø370mm
-
Vial stoppering system
-
Vacuum regulation by magnetic valve
-
Vacuum pumps 10, 20, 30m³/h and chemical resistant type
-
Ampoules adapter 16
-
N2-liquid cooling with up to –150°C
-
Microprocessor controller with 4 line LCD display for indication of condenser temp. and vacuum, integrated Pirani sensor 0.001…1000mbar (On Request)
|
VaCo 10 |
VaCo 10-II |
|
|---|---|---|
|
Dimensions |
Ø 400 x 400 mm |
Ø 400 x 400 mm |
|
Volume |
50 litres |
50 litres |
|
Temperature |
-50°C |
-80°C |
|
Ice capacity |
10 kg/24h |
10 kg/24h |
|
Max. Ice |
12 kg |
12 kg |
|
Cooling system |
one- stage, |
two-stage, |
|
Outer |
800x1200x650mm |
800x1200x650mm |
|
Weight |
75kg |
90kg |
|
Electrical connection |
230 V, 50/60 Hz |
230 V, 50/60 Hz |
