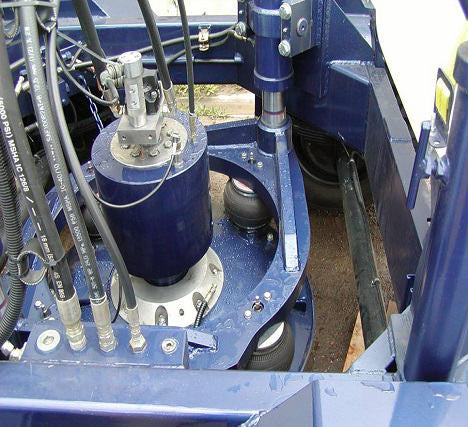

Minivib 6

Supplied By: Industrial Vehicles International, USA

The ‘minivib’ 6 is designed for high resolution shallow geophysical prospecting and civil engineering studies. It provides 6,000 pounds of force output and is an ideal choice for environmentally sensitive areas. It can be mounted on the EnviroVibe 2, the Minibuggy or T-15000 system platforms.


The ‘minivib’ 6 is also shear wave convertible


Specifications Metric Units English Units
Peak Force: 26,689 N 6,000 pounds
Mass Piston Area: 9.7 cm2 1.5 inches2
Reaction Mass Weight: 141 Kg 311 pounds
Reaction Mass Stroke: 4.78 cm 1.88 inches
Servovalve: 18.9 LPM 5 GPM
Servovalve Pilot Filter: 3 Micron 3 Micron
Baseplate Area: 6,567 cm2 1,018 inches2
Baseplate Assembly Weight: 168 kg 370 pounds


The 'minivib' 6 is a source option for the EnviroVibe 2 Seismic Vibrator Production System and T-1500 Truck Mounted Vibroseis System.
