Geophysical Transmitter Control Box: TXM-07

Supplied By: Metronix Geophysics, Germany

TXM-22 & TXB-07: 22 kW Geophysical Transmitter and Transmitter Control Box

The TXM-22 is a highly efficient multi-purpose geophysical power source. It is designed for use in connection with the TXB-07 controller unit. The TXM-22 and TXB-07 form a powerful and flexible transmitter for geophysical applications such as Controlled Source Audio Magnetotellurics (CSAMT), Controlled Source Electro magnetics (CSEM) or Long Offset Transient Electromagnetics (LOTEM).


It can be operated in a wide frequency range between 0.001 Hz and 8,192 Hz. The output current is adjustable up to a maximum of +/-40A. The nominal output voltage is +/-560V.


The TXM-22 is powered by a 50/60Hz, 3-phase, 400V generator. In order to unleash the full capabilities of the system, a generator of min. 40kVA should be used.


The transmitter outputs are connected to 3 electrodes, thus offering the possibility to rotate the current vector in any direction. The TXB-22 uses a Pulse-Width Modulation (PWM) to control the transmitted currents. By this means it is possible to create different output waveforms such as sine wave, square wave, triangle, sawtooth, Pseudo Random Binary Sequences (PRBS) or other user definable signals. For frequencies higher than 2048 Hz the TXM-22 will transmit a square wave only.


The controller unit TXB-07 synchronizes the TXM-22 in reference to the GPS time signal. The parametrization is done with a laptop or a touch-screen computer connected to the controller box. Optionally, it is possible to record the time series of the three injected currents.


The user friendly control software provides a comfortable access to all relevant control parameters of the TXM-22.


Magnetotelluric (MT) Systems Supplier Magnetotelluric (MT) Systems Supplier


Features

    • Frequency range from 1mHz to 8192Hz

    • Current vector can be rotated freely due to 3 electrode output

    • Predefined or user programmable waveforms

    • Automatic execution of job lists

    • Recording of the 3 output currents with 24Bit A/D conversion (option)

    • Synchronization by GPS timing signal

    • Automatic system self-check during start-up

    • Control via W-LAN or LAN with external computer

    • User friendly control software

Magnetotelluric (MT) Systems


Technical Specifications

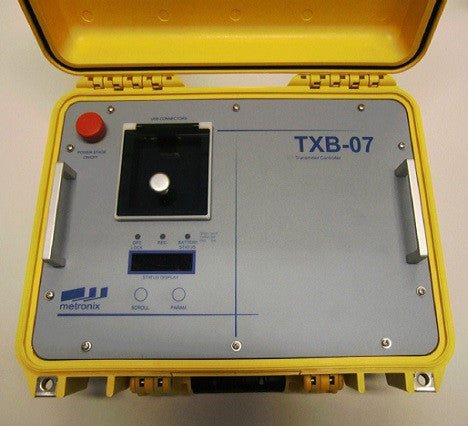

TXB-07 Technical Specifications
Interconnection to TXM-22 Cable with 19 pin connector galvanically decoupled
System Control By external laptop or touchscreen computer via W-LAN or LAN
Ratio for current measurement 25 mV/A
Measurement channels 3
A/D conversion 24 Bit with up to 65,536 samples per second
Synchronization By GPS
Storage Media Compact flash or USB stick
Ambient temperature range -30°C to +60°C
Weight 5.5 Kg
External Dimensions 406mm x 330mm x 174mm
Power By TXM-22 or external 12V battery
Case Ruggedized waterproof plastic case

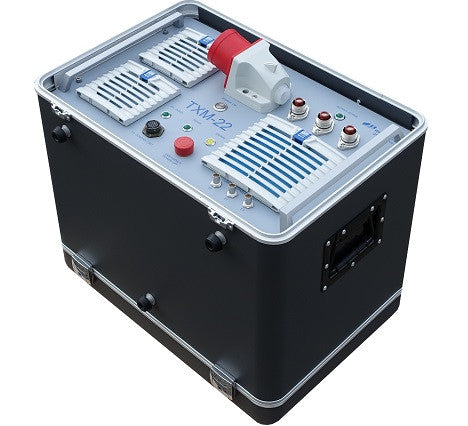

TXM-22 Technical Specifications
Frequency Range 1/1024sec to 8,192Hz
Input 3 phase 50/60 Hz, 400V, socket IEC60309 32A red
Output Voltage ± 560V (1120V peak to peak)
Max Output Current ± 40A (80A peak to peak)
Load Grounded dipole or loop
Transmitter signal wave forms Square wave, sine wave, triangle, sawtooth, PRBS, user defined with up to 2048 set points
System Control By TXB-07 transmitter controller via cable with 19-pole Mil connector
Case Aluminum case 19”
Weight 35 Kg
External Dimensions 480mm x 514mm x 354mm
Ambient Temperature Range 0°C to +40°C non condensing
