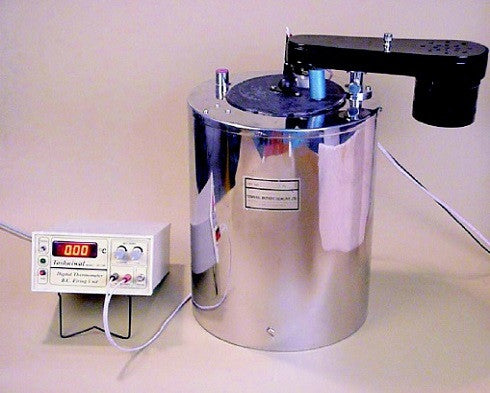

Digital Bomb Calorimeter - Manual System CC01/M2
Supplied By: Toshniwal Technologies Pvt. Limited
A Bomb Calorimeter measures the amount of heat generated when matter is burnt in a sealed chamber in an atmosphere of pure Oxygen gas.
Toshniwal Bomb Calorimeter provides a simple inexpensive yet accurate method to determine the Heat of Combustion, Calorific Value and the Sulphur contents of solids & liquids and fuels. The outfit provided is complete for the analysis as per methods recommended by the Indian Standard Institute (IS: 1359 –1959), British Standard Institute (BS 1016: Part 5:1967) and the Institute of Petroleum (IP 12/63T). Each part of the outfit has been finished and tested according to the specifications laid down by these Institutions.
Principle of Operation:
A known amount of the sample is burnt in a sealed chamber (Bomb). The air is replaced by pure Oxygen. Sample is ignited electrically. As the sample is burnt, heat is produced. The rise in temperature is measured. Since barring the loss of heat, the amount of heat produced by burning the sample must be equal to the amount of heat absorbed by the Bomb Calorimeter assembly. A knowledge of the Energy Equivalent of the Bomb Calorimeter assembly and of the rise in temperature enables one to calculate the heat of combustion of the sample.
W= Energy Equivalent of the calorimeter assembly in calories per degree centigrade
T= Rise in temperature in degree Celsius
H = Heat of combustion of material in calories per gram
M = Mass of the sample burnt in grams
Then W.T = H.M or H = W.T / M
Oxygen Bomb Calorimeter Model: CC01/M2
Toshniwal Bomb Calorimeter with Digital Differential Temperature/Firing Unit provides an accurate, simple and inexpensive method for determination of Heat of Combustion, Calorific Value and Sulphur contents of solids, liquids and volatile fuels.
The Bomb Jacket with top cover is provided with special highly insulated material so that temperature radiation is practically nil. Temperature correction to get the final and correct result is not required.
The readings of Toshniwal Digital Differential Temperature/Firing Unit are at par with Beckman Thermometer.
Digital Bomb Calorimeter Salient Features:
Bomb body is machined from corrosion resistant stainless steel alloy
Each bomb is tested at a pressure of 300 atm for 10 minutes
Offset stirrer precludes heat from motor to Calorimeter Vessel
Easy to handle and operate
The Digital Differential Temperature/Firing Unit with Electronic Timer Features:
Temperature Indication: 3.5 Digit digital display
Differential Temperature range: 0 - 100 C
Reading Resolution of temperature: 0.01° C
Firing Voltage for Bomb: 12 VAC
LED Indication for filament continuity
LED Indication for Bomb Combustion
|CC01/M2 Bomb Calorimeter is supplied with the following items|
|Combustion Bomb||Cotton Reel|
|Calorimeter Vessel||Stand for Bomb Lid|
|Combined Lid||Hook for lifting Bomb|
|Stirrer||Crucible – 2 nos.|
|Connecting Leads||Gelatine Capsules – 50 nos.|
|Connecting tube for Oxygen Cylinder||Gas Release Valve|
|Adjustable Spanner||O – Rings for Bomb and Stirrer|
|Nichrome Ignition Wire (20 M. 36 SWG)||Valve for Bomb|
|Valve Key||Pellet Press|
|Benzoic Acid – 10 Tablets||Instruction Manual|
