Weight Drop Controller

Supplied By: Seismic Source Company, USA

Weight Drop Controller (WDC): Weight Drop Operation On Seismic Crews

The Weight Drop Controller (WDC) System is a completely integrated solution for controlling an accelerated Weight Drop Unit (Thumper)

Weight Drop Controller

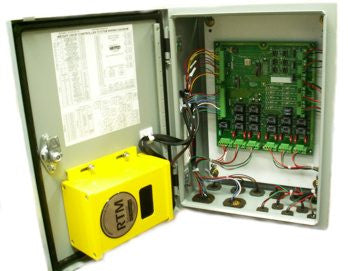

The Weight Drop Controller unit consists of the following:

    • Weight Drop Relay Control System

    • Radio Trigger Module (RTM)

    • Remote Control Box

    • Radio

    • Hammer Switch

The Weight Drop Controller provides following features:

    • Automatic cycling with user entered number of hits

    • Time Delay Display (Time from fire command to hit)

    • GPS interface for position and timing

    • Remote Control Box

    • Controlled performance of the Weight Drop Units from the recorder

WDC Specifcations
Operating Voltage: 12V
Power: 30 Watts
Dimensions: 76 x 305 x 305 mm
Weight: 4.5 Kg
RTM Encoder Specifcations
Operating Voltage: 9 - 18V
Power: 10 Watts
Dimensions: 76 x 152.5 x 152.5 mm
Weight: 1.8 Kg
