KT-20 Magnetic Susceptibility/Conductivity Meters

KT-20 Magnetic Susceptibility and Conductivity Meter

The KT-20 is a handheld instrument capable of measuring the magnetic susceptibility, conductivity or density of a sample. Its modular design provides users the ability to employ different sensors that are of an optimal frequency for either magnetic susceptibility or conductivity measurements. The sensors are available in circular and rectangular designs and can easily be interchanged, allowing the KT-20 to measure smaller or larger sized samples or cores.    Density measurements can also be obtained from the KT-20 providing more information about the sample.   A picture, audio note, text note and GPS coordinates can also be added to the measurement to increase the amount of information one can attach to each record to improving archiving

Applications:

• Mineral exploration

• Core analysis

• Oil and gas exploration

• Environmental investigations

• Agricultural research

• Archaeology

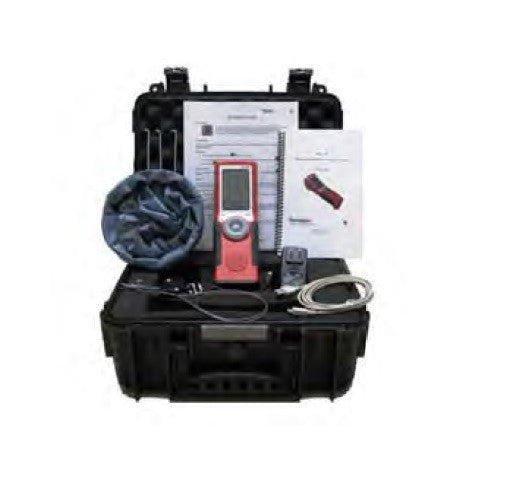

Standard System Includes:

• KT-20 Console

• Rechargeable Li-Ion Batteries with Charger

• Accessories for Density Measurements

• USB Cable

• Operations Manual with Quick Start Guide

• Rugged Transportation Case

Magnetic Susceptibility and Conductivity Meter Models:

KT-20 Magnetic Susceptibility Meter

• Maximum Sensitivity:  10^-7 (using 10 kHz single-frequency sensor without pin)

• Maximum Range: 2 SI units

• “Plus” upgrade for iron ore (optional):

• Increase measurement range to 10 SI units

• Iron ore concentration estimates (%) directly from the display based on calibration curve for magnetite

KT-20C Magnetic Conductivity Meter

• Maximum Sensitivity:  0.1 S/m (using 100 kHz dual-frequency sensor without pin)

• Maximum Range:

• 0.1 to 15,000 S/m (using 100 kHz dual-frequency sensor)

• 1.0 to 100,000 S/m (using 10 kHz frequency)

• Absolute Conductivity Meter, calibrated using multi-point algorithm

• “Cx” upgrade to increase measurement range to 200,000 S/m (optional)

• Note: Cx option is only available with 1 kHz and 10 kHz frequencies

KT-20S/C Magnetic Conductivity Meter

• Maximum Sensitivity:  0.1 S/m (using 100 kHz dual-frequency sensor without pin)

• 10^-7 (using 10 kHz single-frequency sensor)

• Conductivity: 0.1 S/m (using 100 kHz dual-frequency sensor)

• Maximum Range:

• Magnetic Susceptibility: 2 SI units

• Conductivity

• 0.1 to 15,000 S/m (using 100 kHz dual-frequency sensor)

• 1.0 to 100,000 S/m (using 10 kHz frequency)

• Absolute Conductivity Meter, calibrated using multi-point algorithm

• “Plus” upgrade for iron ore (optional):

• Increase measurement range to 10 SI units

• Iron ore concentration estimates (%) directly from the display based on calibration curve for magnetite

• “Cx” upgrade to increase measurement range to 200,000 S/m (optional)

• Note: Cx option is only available with 1 kHz and 10 kHz frequencies

KT-20 Series Magnetic Susceptibility and Conductivity Meters Measurement Screens

Density Measurements

Sensors

• Five sensors are available in dual and single frequencies to provide certain benefits for either magnetic susceptibility or conductivity measurements.

• State of the art design enables sensors to be easily interchanged.

• Circular and rectangular sensor designs available to adapt the KT-20 to large and small sized samples (note: 10 kHz single- frequency sensor is only available in a circular design).



• 10 kHz single-frequency sensor includes a pin for measuring rough or uneven surfaces.

• Each KT-20 model requires one sensor for operation.  Multiple sensors can be purchased with the KT-20 or added afterwards.

• IP/Resistivity Sensor and 3F-32 Triple-Frequency Large Diameter Sensor will become available in late 2015.

Magnetic Susceptibility Calibration Pads and Conductivity Reference Pads

Magnetic Susceptibility Calibration Pads

Two calibration pads with low or high susceptibility values are available to verify the KT‐20’s magnetic susceptibility measurements. These calibration pads can also be used to recalibrate the magnetic susceptibility readings.

Conductivity Reference Pads

Three reference pads are available to verify the KT‐20’s conductibility measurements.    These reference pads are available with low, medium or high conductivity values. Each pad has been independently tested using different methods for measuring conductivity (AC, DC and impedance bridges).

KT-20 Magnetic Susceptibility and Conductivity Meter Options

Additional Sensors:

Five sensors are currently available for the KT-20. Each KT-20 model requires one sensor for operation. Multiple sensors can be purchased with the KT-20 or added afterwards. An IP/Resistivity Sensor and 3F‐32 Triple‐Frequency Large Diameter (32 cm) Sensor (pictured right) will become available in late 2015.

Instrument Upgrades:

• “Plus” Option for Magnetic Susceptibility Measurements:

• Increase measurement range to 10 SI units

• Iron ore concentration estimates (%) directly from the

display based on a calibration curve for magnetite

• “Cx” Option for Conductivity Measurements:

• Increase range to 200,000 S/m (only available for 1 kHz and 10 kHz frequencies)

Bar Code Scanner:

Upgrade the KT-20 to enable the built-in high resolution camera to read bar codes to improve archiving (available in late 2015).

KT-20 Carrying Pouch:

A carrying pouch is available to store and protect the KT-20 and one sensor while they are not in use
