Precision Balances and Analytical Balances

Precision Balances - Resolution 0.01g - M Series

Supplied By: BEL Engineering, Italy

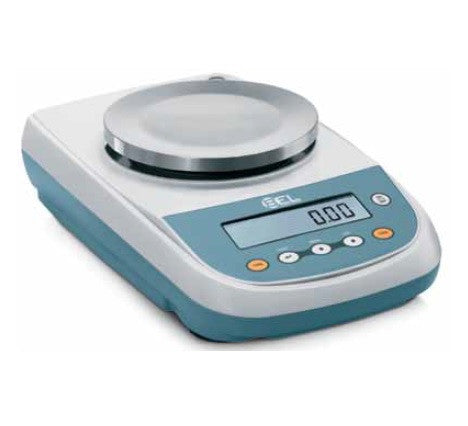

MARK M - Resolution 0.01g Precision Balances

The MARK M - Resolution 0.01g series of Precision Balances combines the nice BEL design with elegance with highly level performance. The Precision Balances consist of double case structure, ergonomic keypad and many embedded advances features making them perfect for use in laboratory, research departments, formulation, and quality control.

Features

The MARK M - Resolution 0.01g series of Precision Balances has the following standard features:

Electromagnet Force Restoration Weighing System
External or Automatic Internal Calibration
LCD with backlight with adjustable contrast
Under Hook Weighing
Plastic protection cover

The MARK M - Resolution 0.01g series of Precision Balances has the following additional features:

Precision Balances and Weighing Scales

Features		Description
EM-FR	Electro Magnetic Force Restoration	Coil in a permanent magnet for the most accurate weighings
RS-232	RS 232 Data Interface	Port to connect the balance to printer, PC and peripheral devices
UNITS	Measuring Units	Changeable measuring units that the balance will use to display weight
PCS	Piece Counting	Function to count identical items. Reference quantities are selectable
LIMITS	Check Weighing	Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH	Percentual Weighing	Function calculates the variation of a sample from reference value
ADD	Adding Weighing	To effect sum of consecutive weighings. Shows total and current weight
ANIMAL	Animal Weighing	Accurate readings under unstable conditions such as moving laboratory animals
DENSITY	Density Determination	Function accurately determines density of a solid object or a liquid
PEAK	Max Load	Retains the peak value. Eg - When a maximum force is quickly released
UNDER	Suspended Weighing	A support with hook can be loaded on the underside of the balance

Models

MARK M - Resolution 0.01g External Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
M2202	2200	0.01	Ø 160	0.005	± 0.02	≤ 2
M3102	3100	0.01	Ø 160	0.01	± 0.02	≤ 2
M4202	4200	0.01	Ø 160	0.01	± 0.03	≤ 2
M5202	5200	0.01	Ø 160	0.01	± 0.03	≤ 3
M6202	6200	0.01	Ø 160	0.01	± 0.03	≤ 3
M8202	8200	0.01	Ø 160	0.01	± 0.04	≤ 3
M5502D	800/5500	0.01/0.1	Ø 160	0.005/0.03	± 0.001/± 0.01	≤ 2
M5202D	3000/5200	0.01/0.1	Ø 160	0.01/0.03	± 0.02/± 0.1	≤ 2
M6202D	4000/6200	0.01/0.1	Ø 160	0.01/0.05	± 0.03/± 0.1	≤ 3

MARK M - Resolution 0.01g Internal Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
M2202i	2200	0.01	Ø 160	0.005	± 0.02	≤ 2
M3102i	3100	0.01	Ø 160	0.01	± 0.02	≤ 2
M4202i	4200	0.01	Ø 160	0.01	± 0.03	≤ 2
M5202i	5200	0.01	Ø 160	0.01	± 0.03	≤ 3
M6202i	6200	0.01	Ø 160	0.01	± 0.03	≤ 3
M5502Di	800/5500	0.01/0.1	Ø 160	0.005/0.03	± 0.001/± 0.01	≤ 2
M5202Di	3000/5200	0.01/0.1	Ø 160	0.01/0.03	± 0.02/± 0.1	≤ 2
M6202Di	4000/6200	0.01/0.1	Ø 160	0.01/0.05	± 0.03/± 0.1	≤ 3

Technical Data

Span Drift: (+ 10... + 30°C): ± 4ppm/°C
Dimensions: L x W x H (mm): 345 x 215 x 100
Power Supply: 110 - 230 Vac, 50/60 Hz; output 24V, 500mA, 13VA
Net Weight: 4.6 Kg (External Calibration Model)
Net Weight: 5.1 Kg (Internal Calibration Model)

Accessories:

BEL Tablet System for Balances. USB version (BL0329) or Bluetooth version (BL0330)
Bluetooth printer DPP-250-BT for BEL Table System (AC013)
Serial Printer TLP-50, with date and time
Serial Printer DPP-250 (AC007)
Density Kit for solids and liquids (AC002)
Density Kit for solids (AC001)
Alphanumeric external keyboard (AC005)
Serial to USB converter (E1002)
Serial Cable for serial output to printer or PC (E743)
Calibration Certificate (BL0333)
Conformity Declaration (Verification)

MARK MG - Resolution 0.01g Precision Balances

Precision Balances and Weighing Scales

The MARK MG - Resolution 0.01g series of Precision Balances combines the nice BEL design with highly level performance. The Precision Balances consist of double case structure, ergonomic keypad and many embedded advances features making them perfect for use in laboratory, research departments, formulation, and quality control. The additional feature of the graphic display allows efficient and easy operations.

Features

The MARK MG - Resolution 0.01g series of Precision Balances has the following standard features:

Electromagnet Force Restoration Weighing System
External or Automatic Internal Calibration
Large Graphical Display
Recipe Database: 99 recipes can be stored, each with up to 20 ingredients
GLP/ISO record keeping of weight values with date, time and serial number
Multi Language: EN, DE, FR, IT, ES, PT
Plastic protection cover
Under Hook Weighing

The MARK MG - Resolution 0.01g series of Precision Balances has the following additional features:

Precision Balances and Weighing Scales

Features		Description
EM-FR	Electro Magnetic Force Restoration	Coil in a permanent magnet for the most accurate weighings
RS-232	RS 232 Data Interface	Port to connect the balance to printer, PC and peripheral devices
UNITS	Measuring Units	Changeable measuring units that the balance will use to display weight
PCS	Piece Counting	Function to count identical items. Reference quantities are selectable
LIMITS	Check Weighing	Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH	Percentual Weighing	Function calculates the variation of a sample from reference value
ADD	Adding Weighing	To effect sum of consecutive weighings. Shows total and current weight
ANIMAL	Animal Weighing	Accurate readings under unstable conditions such as moving laboratory animals
DENSITY	Density Determination	Function accurately determines density of a solid object or a liquid
PEAK	Max Load	Retains the peak value. Eg - When a maximum force is quickly released
GLP	GLP Setup	Allows to store identification data of balance, project and user, date and time
CLOCK	Date and Time	Balance Shows Current date and time
LANG	Multi Language	Several languages can be selected from the menu of the balance
RECIPE	Formulation	Allows to set recipes with names and tolerances for each ingredient. Automatic reproportioning
UNDER	Suspended Weighing	A support with hook can be loaded on the underside of the balance

Models

MARK MG - Resolution 0.01g External Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MG2202	2200	0.01	Ø 160	0.005	± 0.02	≤ 2
MG3102	3100	0.01	Ø 160	0.01	± 0.02	≤ 2
MG4202	4200	0.01	Ø 160	0.01	± 0.03	≤ 2
MG5202	5200	0.01	Ø 160	0.01	± 0.03	≤ 3
MG6202	6200	0.01	Ø 160	0.01	± 0.03	≤ 3
MG8202	8200	0.01	Ø 160	0.01	± 0.04	≤ 3
MG5502D	800/5500	0.01/0.1	Ø 160	0.005/0.03	± 0.001/± 0.01	≤ 2
MG5202D	3000/5200	0.01/0.1	Ø 160	0.01/0.03	± 0.02/± 0.1	≤ 2
MG6202D	4000/6200	0.01/0.1	Ø 160	0.01/0.05	± 0.03/± 0.1	≤ 3

MARK MG - Resolution 0.01g Internal Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MG2202i	2200	0.01	Ø 160	0.005	± 0.02	≤ 2
MG3102i	3100	0.01	Ø 160	0.01	± 0.02	≤ 2
MG4202i	4200	0.01	Ø 160	0.01	± 0.03	≤ 2
MG5202i	5200	0.01	Ø 160	0.01	± 0.03	≤ 3
MG6202i	6200	0.01	Ø 160	0.01	± 0.03	≤ 3
MG5502Di	800/5500	0.01/0.1	Ø 160	0.005/0.03	± 0.001/± 0.01	≤ 2
MG5202Di	3000/5200	0.01/0.1	Ø 160	0.01/0.03	± 0.02/± 0.1	≤ 2
MG6202Di	4000/6200	0.01/0.1	Ø 160	0.01/0.05	± 0.03/± 0.1	≤ 3
