Precision Balances - Resolution 0.001g - M Series

Supplied By: BEL Engineering, Italy

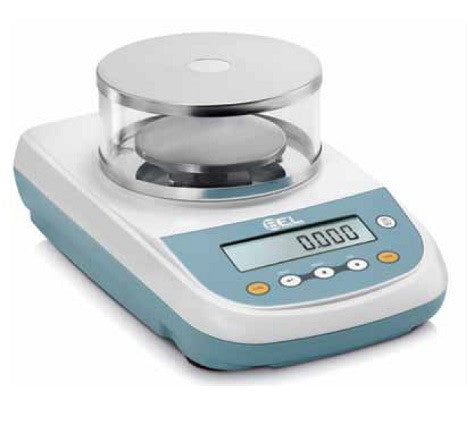

MARK M - Resolution 0.001g Precision Balances

The MARK M - Resolution 0.001g series of Precision Balances combines elegance with highly reliable and durable measuring performance. The Precision Balances consist of double case structure, ergonomic keypad and many embedded advances features making them perfect for use in laboratory, research departments, formulation, and quality control.

Features

The MARK M - Resolution 0.001g series of Precision Balances has the following standard features:

Electromagnet Force Restoration Weighing System
External or Automatic Internal Calibration
LCD with backlight with adjustable contrast
Round Glass Windshield
Under Hook Weighing
Plastic protection cover

The MARK M - Resolution 0.001g series of Precision Balances has the following additional features:

Precision Balances and Weighing Scales

Features		Description
EM-FR	Electro Magnetic Force Restoration	Coil in a permanent magnet for the most accurate weighings
RS-232	RS 232 Data Interface	Port to connect the balance to printer, PC and peripheral devices
UNITS	Measuring Units	Changeable measuring units that the balance will use to display weight
PCS	Piece Counting	Function to count identical items. Reference quantities are selectable
LIMITS	Check Weighing	Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH	Percentual Weighing	Function calculates the variation of a sample from reference value
ADD	Adding Weighing	To effect sum of consecutive weighings. Shows total and current weight
ANIMAL	Animal Weighing	Accurate readings under unstable conditions such as moving laboratory animals
DENSITY	Density Determination	Function accurately determines density of a solid object or a liquid
PEAK	Max Load	Retains the peak value. Eg - When a maximum force is quickly released
UNDER	Suspended Weighing	A support with hook can be loaded on the underside of the balance

Models

MARK M - Resolution 0.001g External Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
M223	220	0.001	Ø 110	0.0005	± 0.002	≤ 2
M333	350	0.001	Ø 110	0.0005	± 0.002	≤ 2
M523	520	0.001	Ø 110	0.001	± 0.002	≤ 2
M723	720	0.001	Ø 110	0.001	± 0.002	≤ 2
M1003	1000	0.001	Ø 110	0.001	± 0.003	≤ 3
M1203	1200	0.001	Ø 110	0.001	± 0.003	≤ 3
M1003D	500/1000	0.001/0.01	Ø 110	0.001/0.005	± 0.001/± 0.01	≤ 2
M1203D	720/1200	0.001/0.01	Ø 110	0.001/0.005	± 0.002/± 0.01	≤ 2

MARK M - Resolution 0.001g Internal Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
M223i	220	0.001	Ø 110	0.0005	± 0.002	≤ 2
M333i	350	0.001	Ø 110	0.0005	± 0.002	≤ 2
M523i	520	0.001	Ø 110	0.001	± 0.002	≤ 2
M723i	720	0.001	Ø 110	0.001	± 0.002	≤ 2
M1003i	1000	0.001	Ø 110	0.001	± 0.003	≤ 3
M1203i	1200	0.001	Ø 110	0.001	± 0.003	≤ 3
M1003Di	500/1000	0.001/0.01	Ø 110	0.001/0.005	± 0.001/± 0.01	≤ 2
M1203Di	720/1200	0.001/0.01	Ø 110	0.001/0.005	± 0.002/± 0.01	≤ 2

Technical Data

Span Drift: (+ 10... + 30°C): ± 4ppm/°C
Dimensions: L x W x H (mm): 345 x 215 x 155
Weighing Chamber Dimensions: Dia x H (mm): 150 x 70
Power Supply: 110 - 230 Vac, 50/60 Hz; output 24V, 500mA, 13VA
Net Weight: 4.6 Kg (External Calibration Model)
Net Weight: 4.9 Kg (Internal Calibration Model)

Accessories:

BEL Tablet System for Balances. USB version (BL0329) or Bluetooth version (BL0330)
Bluetooth printer DPP-250-BT for BEL Table System (AC013)
Serial Printer TLP-50, with date and time
Serial Printer DPP-250 (AC007)
Density Kit for solids and liquids (AC002)
Density Kit for solids (AC001)
Alphanumeric external keyboard (AC005)
Serial to USB converter (E1002)
Serial Cable for serial output to printer or PC (E743)
Calibration Certificate (BL0333)
Conformity Declaration (Verification)

MARK MG - Resolution 0.001g Precision Balances

Precision Balances and Weighing Scales

The MARK MG - Resolution 0.001g series of Precision Balances combines elegance with highly reliable and durable measuring performance. The Precision Balances consist of double case structure, ergonomic keypad and many embedded advances features making them perfect for use in laboratory, research departments, formulation, and quality control. The additional feature of the graphic display allows efficient and easy operations.

Features

The MARK MG - Resolution 0.001g series of Precision Balances has the following standard features:

Electromagnet Force Restoration Weighing System
External or Automatic Internal Calibration
Large Graphical Display
Recipe Database: 99 recipes can be stored, each with up to 20 ingredients
GLP/ISO record keeping of weight values with date, time and serial number
Multi Language: EN, DE, FR, IT, ES, PT
Round Glass Windshield
Plastic protection cover
Under Hook Weighing

The MARK MG - Resolution 0.001g series of Precision Balances has the following additional features:

Precision Balances and Weighing Scales

Features		Description
EM-FR	Electro Magnetic Force Restoration	Coil in a permanent magnet for the most accurate weighings
RS-232	RS 232 Data Interface	Port to connect the balance to printer, PC and peripheral devices
UNITS	Measuring Units	Changeable measuring units that the balance will use to display weight
PCS	Piece Counting	Function to count identical items. Reference quantities are selectable
LIMITS	Check Weighing	Upper and Lower limits can be set individually, for dosing and portioning
% WEIGH	Percentual Weighing	Function calculates the variation of a sample from reference value
ADD	Adding Weighing	To effect sum of consecutive weighings. Shows total and current weight
ANIMAL	Animal Weighing	Accurate readings under unstable conditions such as moving laboratory animals
DENSITY	Density Determination	Function accurately determines density of a solid object or a liquid
PEAK	Max Load	Retains the peak value. Eg - When a maximum force is quickly released
GLP	GLP Setup	Allows to store identification data of balance, project and user, date and time
CLOCK	Date and Time	Balance Shows Current date and time
LANG	Multi Language	Several languages can be selected from the menu of the balance
RECIPE	Formulation	Allows to set recipes with names and tolerances for each ingredient. Automatic reproportioning
UNDER	Suspended Weighing	A support with hook can be loaded on the underside of the balance

Models

MARK MG - Resolution 0.001g External Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MG223	220	0.001	Ø 110	0.0005	± 0.002	≤ 2
MG333	350	0.001	Ø 110	0.0005	± 0.002	≤ 2
MG523	520	0.001	Ø 110	0.001	± 0.002	≤ 2
MG723	720	0.001	Ø 110	0.001	± 0.002	≤ 2
MG1003	1000	0.001	Ø 110	0.001	± 0.003	≤ 3
MG1203	1200	0.001	Ø 110	0.001	± 0.003	≤ 3
MG1003D	500/1000	0.001/0.01	Ø 110	0.001/0.005	± 0.001/± 0.01	≤ 2
MG1203D	720/1200	0.001/0.01	Ø 110	0.001/0.005	± 0.002/± 0.01	≤ 2

MARK MG - Resolution 0.001g Internal Calibration Precision Balance
Model	Capacity (g)	Resolution (g)	Pan (mm)	Repeatibility (g)	Linearity (g)	Response Time (sec)
MG223i	220	0.001	Ø 110	0.0005	± 0.002	≤ 2
MG333i	350	0.001	Ø 110	0.0005	± 0.002	≤ 2
MG523i	520	0.001	Ø 110	0.001	± 0.002	≤ 2
MG723i	720	0.001	Ø 110	0.001	± 0.002	≤ 2
MG1003i	1000	0.001	Ø 110	0.001	± 0.003	≤ 3
MG1203i	1200	0.001	Ø 110	0.001	± 0.003	≤ 3
MG1003Di	500/1000	0.001/0.01	Ø 110	0.001/0.005	± 0.001/± 0.01	≤ 2
MG1203Di	720/1200	0.001/0.01	Ø 110	0.001/0.005	± 0.002/± 0.01	≤ 2
