i-Thermo Moisture Balances

Supplied By: BEL Engineering, Italy

Why the i-Thermo Moisture Balances?

Adopting two microprocessors, one for controlling all functions of the balance and the other for total control of the furnace heat, BEL Engineering came to realize the ideal equipment for moisture determination of raw materials and finished products in the food, cosmetic, dairy, pharmaceutical, chemical, ceramics and construction material industries etc.


The philosophy to adopt two microprocessors in their Moisture Balances enabled BEL Engineering to introduce in the market a product with high performance at competitive cost. The i-Thermo Moisture Balance is the right choice since it provides great quality at competitive prices.

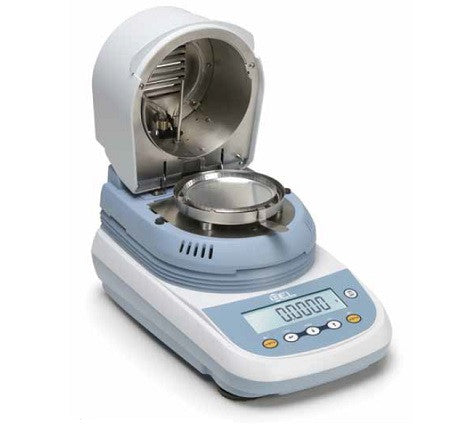

i-Thermo Moisture Balances

Moisture Balances and Moisture Meters


The i-Thermo Moisture Balances are rugged instruments for moisture determination of raw materials and finished samples in the food, cosmetic, ceramics, agriculture, pharmaceutical and construction industries.


i-Thermo Moisture Balance Calibration Data
Model Capacity (g) Resolution (g) Pan (mm) Repeatibility (g) Linearity (g) Precision (2g) Response (Sec.) Weighing System
i-Thermo A64M 60 0.0001 100mm Single Pans 0.0001 ±0.0003 0.18% ≤ 3 Electromagnet Force Restoration
i-Thermo 163M 160 0.001 100mm Single Pans 0.001 ±0.003 0.18% ≤ 3 Electromagnet Force Restoration
i-Thermo 163L 160 0.001 100mm Single Pans 0.001 ±0.003 0.20% ≤ 3 High Resolution Load Cell
i-Thermo 62L 60 0.01 100mm Single Pans 0.01 ±0.03 0.50% ≤ 3 High Resolution Load Cell

i-Thermo Moisture Balance Technical Specifications
Model Span Drift(+10..+30°C) L x W x H (mm) Power Supply Heater Weight (Kg)
i-Thermo A64M ±3ppm/°C 345x215x235

110-230Vac, 50/60Hz; Output 24V 500mA

230 VAC 50/60Hz400 Watts 6.1
i-Thermo 163M ±4ppm/°C 345x215x236 110-230Vac, 50/60Hz; Output 9V 1.2A 230 VAC 50/60Hz400 Watts 6.1
i-Thermo 163L ±4ppm/°C 345x215x237 110-230Vac, 50/60Hz; Output 9V 1.2A 230 VAC 50/60Hz400 Watts 4.7
i-Thermo 62L ±4ppm/°C 345x215x238 110-230Vac, 50/60Hz; Output 9V 1.2A 230 VAC 50/60Hz400 Watts 4.7

The i-Thermo Moisture Balance has the following features:

  • Halogen - Infrared lamp

  • External Calibration

  • LCD with backlight and adjustable contrast

  • Time (1-99min) with 1 minute increments and autostop operating modules

  • 5 drying programs can be stored

  • Temperature Range: 35-160°C with 1°C increments

  • Moisture, dry residue in percentage and ATRO indications

  • Drying resolution 0.001% - 0.01% - 0.1%

  • RS232 serial interface

  • Plastic Protection Cover

Application of Moisture Balances

The amount of moisture in a product can greatly affect the perceived quality of the product. Therefore it is important for manufacturers to test the moisture content present in the products they produce. The simplest, most accurate, and the cheapest method to measure the moisture is to use Moisture Balances.


Moisture Balances are perfect for measuring moisture in almost any product such as grains, pharmaceutical products, chemicals, foods, cosmetic products etc. The Moisture Balance consists of a weighing mechanism which weighs the sample that needs to be tested for moisture content. The Moisture Balance stores the weight data. The sample is then heated for a particular set of time using the Halogen – Infrared lamp. The heat causes moisture in the sample to evaporate thus lowering the weight of the sample. This difference in weight reflects quantity of moisture in the sample. The final reading is in percentages.


i-Thermo Touch Moisture Balances

Moisture Balances and Moisture Meters


The i-Thermo Moisture Balance with large touch screen visor. Easy access and intuitive with programming of drying cycles in laboratory and in quality check lines; more efficiency, productivity, interactivity with the user.


A double case structure; an aluminium inner case and a composite plastic external case protects the heart of the Moisture Balance.


i-Thermo Touch Moisture Balance Calibration Data
Model Capacity (g) Resolution (g)

Pan (mm)

Repeatibility (g) Linearity (g) Precision (2g) Response (Sec.) Weighing System
i-Thermo 163L Touch 160 0.001 100mm Single Pans 0.001 ±0.003 0.20% ≤ 3 High Resolution Load Cell

i-Thermo Touch Moisture Balance Technical Specifications
Model Span Drift(+10..+30°C) L x W x H (mm) Power Supply Heater Weight (Kg) L x W x H Visor (mm) Weight Visor (Kg)
i-Thermo 163L Touch ±4ppm/°C 345x215x237 110-230Vac, 50/60Hz; Output 9V 1.2A

230 VAC 50/60Hz; 400 Watts

4.7 160x200x90 0.68

The i-Thermo Touch Moisture Balance has the following features:

  • Halogen - Infrared lamp

  • External Calibration

  • Touch Screen Large Display LCD 5.7" 640 x 480 pixels

  • Time (1-99min) with 1 minute increments and autostop operating modules

  • Temperature profiles (standard, rapid, mild, steps)

  • Temperature Range: 35-160°C with 1°C increments

  • Moisture, dry residue in percentage and ATRO indications

  • Real time graph of drying process under process

  • Drying resolution 0.01%

  • RS232 serial interface, USB

  • Plastic Protection Cover


Accessories

The i-Thermo Moisture Balance has the following Accessories options:

  • Thermometer Calibration KIT (STCi-02)

  • Serial Printer TLP-50 with date/time (C054)

  • Serial Printer DPP-250 (AC007)

  • Serial to USB converter (E1002)

  • Serial cable for output to printer/PC (E743)

  • TEST pans (100mm x 0.5mm) (A753)

  • Calibration certificates (BL0333)

  • BEL Tablet System for Moisture Balances. USB version (BL0329)

  • BEL Tablet System for Moisture Balances. Bluetooth version (BL0330)

  • Bluetooth Printer DPP-250-BT for BEL Tablet System (AC013)

  • Alphanumeric external keyboard (AC005)


Moisture Balances and Moisture Meters

The i-Thermo Touch Moisture Balance has the following Accessories options:

  • Thermometer Calibration KIT (STCi-02)

  • Serial Printer TLP-50 with date/time (C054)

  • Serial Printer DPP-250 (AC007)

  • Serial to USB converter (E1002)

  • Serial cable for output to printer/PC (E743)

  • TEST pans (100mm x 0.5mm) (A753)

  • Calibration certificates (BL0333)
