> > Fully Automated Omnilog PM-M System
Phenotype MicroArrays for Microbial Cells

Fully Automated Omnilog PM-M System

Supplied By: Biolog, USA

Phenotype MicroArrays for mammalian Cells

Fully Automated Omnilog Phenotype MicroArray System for Mammalian Cells

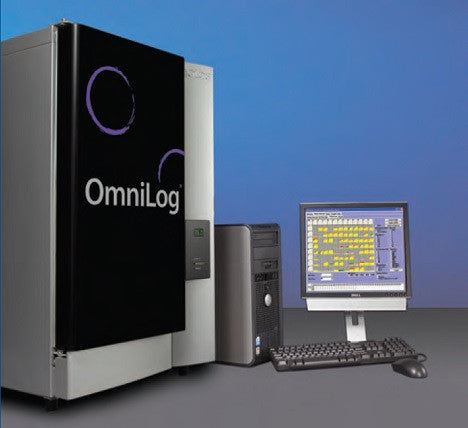

The Biolog OmniLog® simultaneously incubates and monitors 50 microplates with thousands of phenotypic assays to measur e ph ysiolo gical resp on ses in diverse mammalian cells.


Phenotype MicroArrays for Mammalian Cells SystemsPhenotype MicroArrays for Mammalian Cells Systems


The PM-M system includes: instrument, computer, LCD flat panel monitor, software for data collection and analysis, 8 & 12 channel electronic pipettors, user guide, training and one year warranty. Consumables and other accessories are purchased separately.


Omnilog PM System Specifications

Parameter Specification
Size: 530 mm x 810 mm x 580 mm
Power: 100 to 240 volts, 50 to 60 Hz
Operating Temp Range: 18° to 28°C
Operating Humidity Range: 20% to 80% non-condensing
Incubation Temperature Range: 20° to 45°C
Temp Consistency: ± 2°C in the Tray Chamber
Incubation Humidity Range: Ambient
Test Capacity: 50 Micro Plates
Data Capture: CCD images of each microplate at regular intervals
Temperature Control: Input of set temperature by external computer
Temperature Indication: Output to external computer and 7 segment display
Monitor: LCD flat panel, 17 in viewable image size

Buying Guide

All OmniLog PM Systems include the OmniLog incubator/reader, computer, OmniLog PM Software, OmniLog User Guide, Pipettor, Turbidimeter and a one year warranty. Databases are sold separately


Catalog # Description
96161 OmniLog® PM System: The OmniLog PM-M system has the capacity to incubate and monitor up to 50 PM-M MicroPlates for automated cell based metabolic analysis

For Combo Systems, please Click Here


For Omnilog Bacteria Identification System, please click here


Phenotype MicroArray Applications

Phenotype MicroArray Technology is now available for applications with nearly all important cell lines.


General Areas Emphasizing Metabolism

    • Obesity

    • Diabetes

    • Metabolic Disorders

    • Nutrition

    • Aging

    • Mitochondrial Diseases

    • Cancer (Warburg Effect)

    • Chemosensitivity

    • Mitochondrial Toxicity

    • Cellular Toxicity

    • Stem Cell Metabolism

    • Bioprocess Optimization

    • Cell Line QC

    • Cell Energetics

Kinetic Data Capture and Analysis

OmniLog PM-M soware contains a suite of algorithms that work in conjunction with the OmniLog PM-M system and Phenotype MicroArray panels to automate incubation of up to 50 microplates at a user-specified temperature with continuous collection of colorimetric assay data over time. PM-M data analysis programs allow for display of kinetic data, manage and analyze the data, export it in a variety of raw and processed forms, and generate reports.


Phenotype MicroArrays for Mammalian Cells

Software Functions:

    • Drives the operation of the OmniLog PM-M system

    • Guides loading and reading of plates or PM-M panels

    • Creates a kinetic data file for each P-MM panel

File Management/Kinetic Analysis

    • Assembles plate or PM-M panel data files into data lists

    • Displays kinetic plots of the data

    • Allows export of kinetic plots as bmp or jpeg files

Parametric Analysis:

    • Extracts data lists from the File Management /Kinetic Analysis module

    • Calculates parameters from kinetic data

    • Allows comparison of two data lists

    • Highlights wells and generates a report on phenotypes that differ significantly in any selected kinetic analysis parameter

    • Allows identification of substrates in all PM-M panels

    • Links metabolic substrates in PM-M panels to KEGG database

    • Exports the original OmniLog kinetic data

    • Export data parameters for statistical & bio-informatic analysis

Phenotype MicroArrays for Mammalian Cells SystemsPhenotype MicroArrays for Mammalian Cells Systems


OmniLog-PM’s PMM Assay Portfolio

    • Carbon Energy & Nitrogen Substrates: 367 metabolic substrates. Substrates include carbohydrates/starches, alcohols, fatty acids, ketones, carboxylic acids, amino acids and dipeptides on 4x96 well microplates

    • Hormones: 45 different hormones each at six different concentrations on 3x96 well microplates

    • Trace Elements: 22 different ions/cofactors each at four different concentrations on 1x96 well microplate

    • Anti-Cancer Chemosensitivity: 92 anti-cancer agents each at four different concentrations on 4x96 well microplates

    • Mitochondrial Toxicity: 8 carbon-energy substrates (associated with diverse pathways, e.g. hexose, pentose, etc.) to distinguish different aspects of mitochondrial activity/dysregulation in the context of chemical/drug screens on 1x96 well microplate

Phenotype MicroArrays for Mammalian Cells

Phenotype MicroArrays for Mammalian Cells
